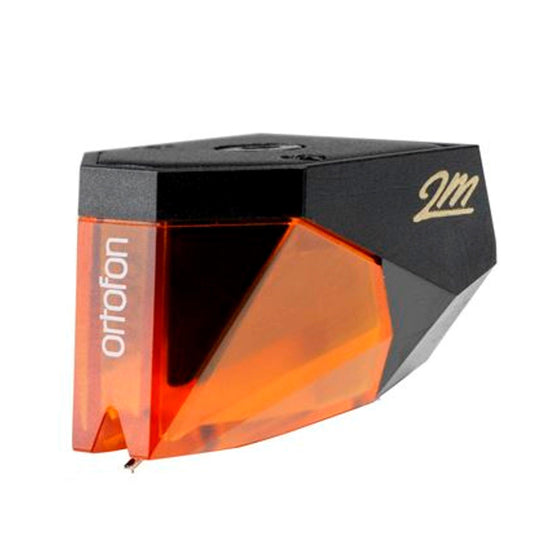

Moving Magnet Phono Cartridge ORTOFON 2M BRONZE
Moving Magnet Phono Cartridge ORTOFON 2M BRONZE
Moving Magnet Phono Cartridge ORTOFON 2M BRONZE
Moving Magnet Phono Cartridge ORTOFON 2M BRONZE

Moving Magnet Phono Cartridge ORTOFON 2M BRONZE

€379,00
worldwide-delivery
VAT included in price for European Union countries and may be adjusted based on delivery country at check-out.
Average shipping time : 4 to 5 weeks. Shipping is free within European Union (except for specific territories) above 99€ purchase up to 50kg. Shipping costs on quote above 50kg – quote request to be send to : contact@audiosoundmusic.com. There is no return policy for countries outside of the European Union.

Adds even more resolution and details in an evenhanded way

2M Series styli interchangeability:

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

- 2M Red, 2M Blue and 2M Silver

- 2M Bronze, 2M Black and 2m Black LVB 250

- 2M Mono and 2M 78



Compatibility with Rega brand TT/TA:

REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.

Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.

3.2 - 4 mm spacers should be enough for 2M cartridge.



Features :

  • Output voltage at 1000 Hz, 5cm/sec.  -  5 mV
  • Channel balance at 1 kHz  -  1 dB
  • Channel separation at 1 kHz  -  26 dB
  • Channel separation at 15 kHz  -  15 dB
  • Frequency response  -  20-20.000 + 2 / - 0 dB
  • Tracking ability at 315Hz at recommended tracking force  -  80 µm
  • Compliance, dynamic, lateral  -  22 µm/mN
  • Stylus type  -  Nude Fine Line
  • Stylus tip radius  -   r/R 8/40 µm
  • Tracking force range  -  1.4-1.7 g (14-17 mN)
  • Tracking force, recommended  -  1.5 g (15 mN)
  • Tracking angle  -  20°
  • Internal impedance, DC resistance  -  1.2 kOhm
  • Internal inductance  -  630 mH
  • Recommended load resistance  - 47 kOhm
  • Recommended load capacitance  -  150-300 pF
  • Cartridge colour, body/stylus  -  Black/Bronze
  • Cartridge weight  -   7.2 g


Replacement stylus unit  -  2M Bronze (interchangeable with 2M Black and 2M Black LVB 250)
