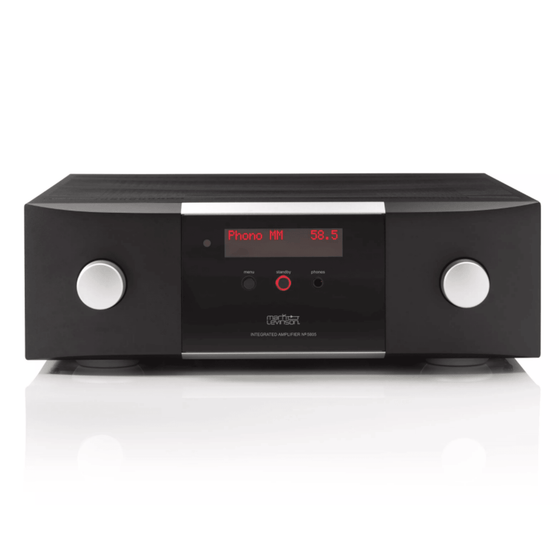

Solid State Integrated Amplifier MARK LEVINSON N°5805 (MM & MC)
Integrated Amplifier for Digital and Analog Sources.
Reveal the hidden details of your vinyl and digital music.
Experience the true power of your music with an integrated amplifier that allows you to hear the unique character of every note. The Mark Levinson № 5805 contains a high-quality preamplifier, phono stage and amplifier in one seamless package, delivering dynamic sound for your entire digital and analog music collection.
Powerful Amplification
Fill your home with rich, enveloping waves of sound. This high-end integrated amplifier contains a highly capable power supply (500+ VA toroidal transformer) that allows it to provide the right amount of power to your loudspeakers — and deliver premium audio performances without distortion.
Detailed Digital Audio
Discover new details in your digital music, from hidden harmonies to whispered cues. The № 5805 includes a premium Precision Link II Digital-to-Analog Converted (DAC) that accurately reproduces audio signals and minimizes noise, so you can experience outstanding audio quality and connect to your music on a deeper level.
Extraordinary Analog Audio
Mark Levinson’s proprietary Pure Path circuit design maximizes audio signal integrity with exceptional accuracy and sonic clarity from this high-end integrated amplifier with a premium phono pre-amp. The result? Unmatched sound quality that captures the nuances of your entire analog music collection.
Features:
Highlights
Nº 5000 Series signature design
EuP compliant / low-power standby
Designed and handcrafted in the USA

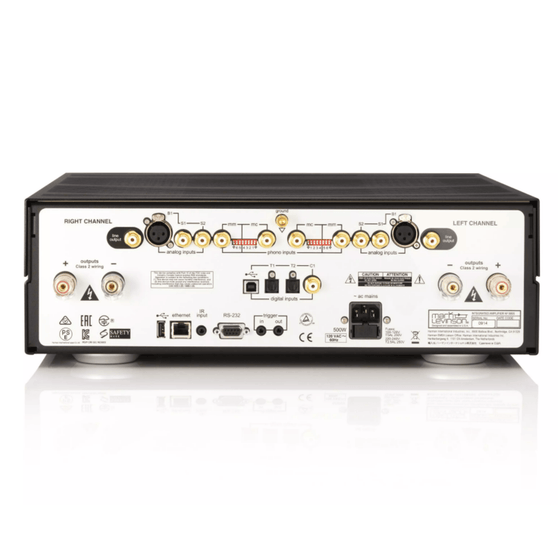

Inputs
1 x USB 2.0, 1 x coaxial S/PDIF, and 2 x optical S/PDIF
384 kHz/32 bit PCM and DSD 11.2 MHz capability
Bluetooth audio input including aptX HD support
MQA full decoding on all digital inputs including asynchronous USB
Analog Inputs: 1 x balanced XLR stereo, 2 x RCA stereo, 1 x RCA Phono (MM/MC)
HT processor pass-thru mode
Outputs
Line outputs: 1 x RCA stereo (variable)
Headphone output: 1 x 1/4-inch/6.35mm jack (front panel)
Speaker outputs: 2 pairs high-current binding posts
Control
Ethernet (RJ45), RS-232 (DB9), 12V trigger input/output and IR input (3.5mm jack)
Webpage setup, configuration import/export, software updates
Included handheld IR remote control
Mark Levinson Kontrol app for Android and iOS devices
Amplification
Bandwidth: <2Hz à 20kHz, +0/–0.2 dB; <2Hz to 100kHz, +0/–3dB
Signal to noise ratio: >103dB (20Hz à 20 kHz, A-weighted); >100dB (20Hz à 20 kHz, large bande, unweighted) Total Harmonic Distortion + Noise: <0.035% at 1kHz, 125W, 8Ω; <0.18% at 20kHz, 125W, 8Ω
Power Full Amplification: 125W RMS par canal à 8Ω, 20Hz à 20kHz
Output impedance: <0.098Ω, 20Hz à 10kHz; <0.11Ω à 20kHz
Damping factor: >82, 20Hz à 10kHz; >72 à 20kHz (8Ω)
On customer's site installation and set-up within European Union included
After delivery of the product, one of our team members will take an appointment at the address of delivery to install your equipment, and make sure it is properly set-up.
