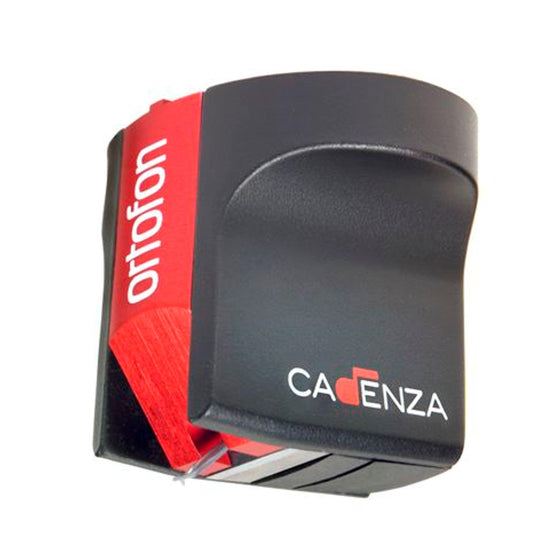

Moving Coil Phono Cartridge ORTOFON MC Cadenza Red

€1.249,00
worldwide-delivery
VAT included in price for European Union countries and may be adjusted based on delivery country at check-out.
Average shipping time : 4 to 5 weeks. Shipping is free within European Union (except for specific territories) above 99€ purchase up to 50kg. Shipping costs on quote above 50kg – quote request to be send to : contact@audiosoundmusic.com. There is no return policy for countries outside of the European Union.



The Red model is using a nude fine line stylus with a cylindrical aluminium cantilever

The stylus tip radius is r/R 8/40 μm. The coils are made from 6NX (99.9999 %) pure silver wire. An improved winding process on the armature allows a better channel balance. The sound picture of Cadenza Red is more relaxed, homogeneous and moderately dynamic in the perspective compared to the Cadenza Blue and have great space and depth in the stereo image.



Features:

  • Output voltage at 1 kHz 5 cm/sec - 0.45 mV
  • Channel balance - < 1.5 dB
  • Channel separation at 1 kHz - > 23 dB
  • Channel separation at 15 kHz - > 15 dB
  • Frequency response 20 Hz - 20 kHz - +3/-1
  • Tracking ability at 315 Hz at recommended tracking force *) - 80 μm
  • Compliance, dynamic, lateral - 12 μm/mN
  • Stylus type - Nude Fine Line on Alu cantilever
  • Stylus tip radius - r/R 8/40 μm
  • Tracking force range - 2.2-2.7 g (22-27 mN)
  • Tracking force recommended - 2.5 g (25 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - 50-500 Ohm
  • Cartridge body material - Stainless steel Aluminium
  • Cartridge colour - Red/Black
  • Cartridge weight - 10.7 g

*) Typical value
