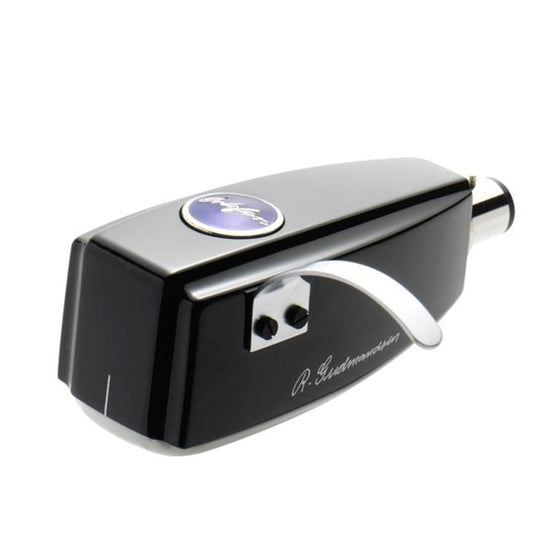

Moving Coil Phono Cartridge ORTOFON SPU Meister Silver G MkII - AudioSoundMusic

Moving Coil Phono Cartridge ORTOFON SPU Meister Silver G MkII

€1.775,00
worldwide-delivery
VAT included in price for European Union countries and may be adjusted based on delivery country at check-out.
Average shipping time : 4 to 5 weeks. Shipping is free within European Union (except for specific territories) above 99€ purchase up to 50kg. Shipping costs on quote above 50kg – quote request to be send to : contact@audiosoundmusic.com. There is no return policy for countries outside of the European Union.



The SPU Meister Silver G MkII has been improved on coil winding material, stylus and magnet.



The cartridge has been outfitted with high purity multi-conductor 6–nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.

The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.

The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.



Features:

  • Output voltage at 1000 Hz 5cm/sec - 0.3 mV
  • Channel balance at 1 kHz < 1 dB
  • Channel separation at 1 kHz > 20 dB
  • Channel separation at 15 kHz > 10 dB
  • Frequency response 20 - 20,000 Hz +2/-1 dB
  • Tracking ability at 315 Hz at recommended tracking force *) > 70 μm
  • Compliance, dynamic, lateral - 8 μm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 μm
  • Tracking force range - 3.0-5.0 g (30-50 mN)
  • Tracking force recommended - 4.00 g (40 mN)
  • Tracking angle - 20º
  • Internal impedance, DC resistance - 3 ohm
  • Recommended load impedance > 10 ohm
  • Coilwire material - Silver, 6-nines
  • Cartridge body material - Ground wood and resin composite
  • Cartridge colour - Shiny black
  • Cartridge Weight - 28 gram

*) Typical value
