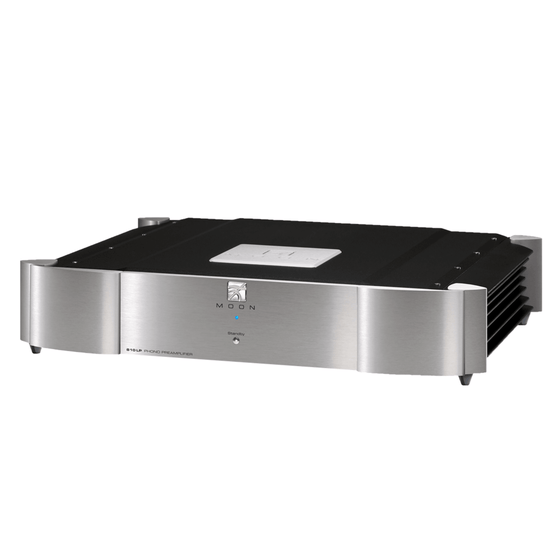

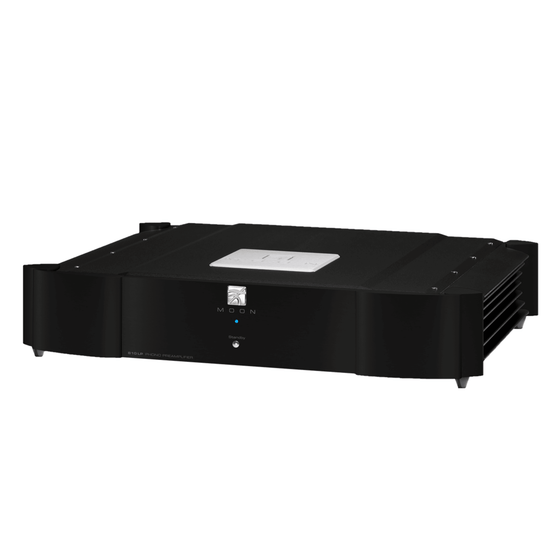

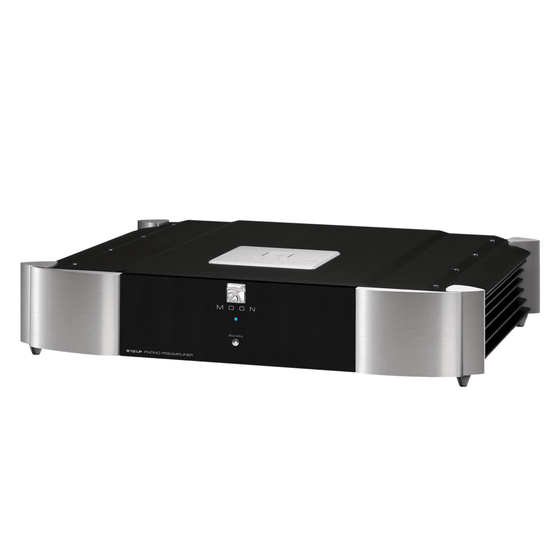

Phono Stage Solid State – MOON 810LP (MM & MC)
A true purist design that is destined to become the new reference for analog playback. Astonishing analog reproduction combined with unsurpassed flexibility!
On customer's site installation and set-up within European Union included
The ultimate phono preamplifier: “Over time the soundstage got even deeper and incredibly wide, with the unerring ability to clearly place and delineate individual musicians within a fully fleshed-out acoustic.” – Graham Abbott, SoundStage! Ultra
Suspension which eliminate microphonics for absolute best analog sound: “In terms of black backgrounds, top-to-bottom transient response, image definition, dynamic contrasts at both ends of the scale, and rhythm’n’pacing, the MOON 810LP was worth its considerable price. It was a model of rhythmic and spatial organization.”– Michael Fremer, Stereophile
Incredible level of input optimization for any cartridge
Features
- Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 24 stages in all.

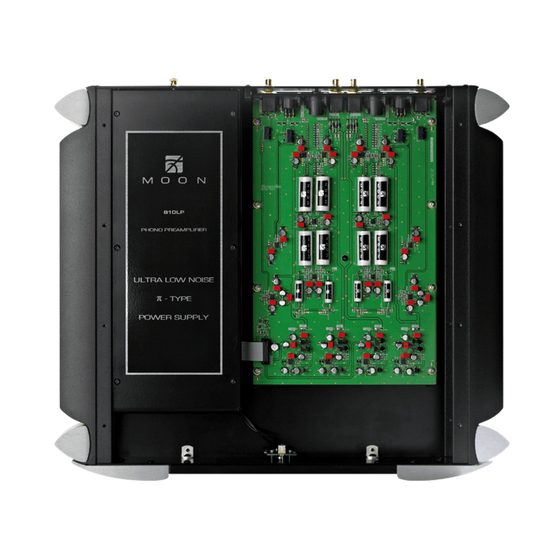

- The dedicated audio circuit board is mounted on a 5-point gel-based floating suspension, derived from our M-Octave technology, originally developed for our reference 850P Preamplifier.
- Fully compatible with 820S external power supply.
- Customized parts include metallized polypropylene film capacitors with very tight tolerances of 1%.
- Four-layer PCB tracings with dedicated ground and power planes using pure copper for low impedance characteristics.

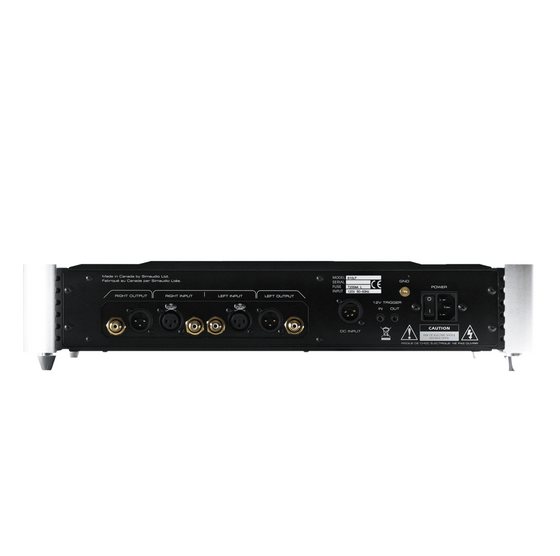

- Inputs (XLR / RCA):1 pair / 1 pair
- S/N Ratio (full scale @40dB gain): 115dBr
- S/N Ratio (full scale @70dB gain): 95dBr
- IEC Curve Effect: -7dB @ 10Hz
- Frequency response: 20Hz - 20kHz ±0.1dB
- Crosstalk @ 1kHz: -106dB
- Output impedance: 50Ω
- THD (20Hz - 20kHz): 0.0008%
- Intermodulation distortion: 0.001%
- Input overload @40dB gain (XLR / RCA): 200mV RMS / 100mV RMS
- Input overload @70dB gain (XLR / RCA): 5mV RMS / 2.5mV RMS
- Shipping weight: 40 lb / 18 kg
- Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in
- Dimensions (width x height x depth): 47,6 x 10,2 x 42,7 cm
The following accessories should be included inside the box with your phono preamplifier:
- AC power cable
- One (1) pen shaped plastic hand tool for making DIP-switch adjustments
- Owner’s manual
On customer's site installation and set-up within European Union included
One of our team members will take an appointment with you to deliver the product, install it and make sure it is properly set-up.
