Phono Stage Solid State – Pro-ject Phono Box E (MM)
Phono Stage Solid State – Pro-ject Phono Box E (MM)
Phono Stage Solid State – Pro-ject Phono Box E (MM)
Phono Stage Solid State – Pro-ject Phono Box E (MM)
Phono Stage Solid State – Pro-ject Phono Box E (MM)
Phono Stage Solid State – Pro-ject Phono Box E (MM)

Phono Stage Solid State – Pro-ject Phono Box E (MM)

€79,00
VAT included in price for European Union countries. VAT may be adjusted based on delivery country at check-out. Shipping cost (if any) will be added at check-out. Shipping is free within European Union above 99€ purchase except for specific territories (please see general terms & conditions). There is no return policy in regards to Japan, Australia, New Zealand, Singapore, Hong-Kong, Taiwan, India, Malaysia, Vietnam, The Philippines, Indonesia, Turkey, Saudi Arabia, Qatar, Dubai, South Africa
banner
MOST EQUIPMENT ARE MANUFACTURED TO ORDER AND REQUIRE EXTENDED DELIVERY TIME
Three to four weeks are usually necessary, sometimes much more
Color

Pure vinyl listening pleasure at an absolute bargain price!

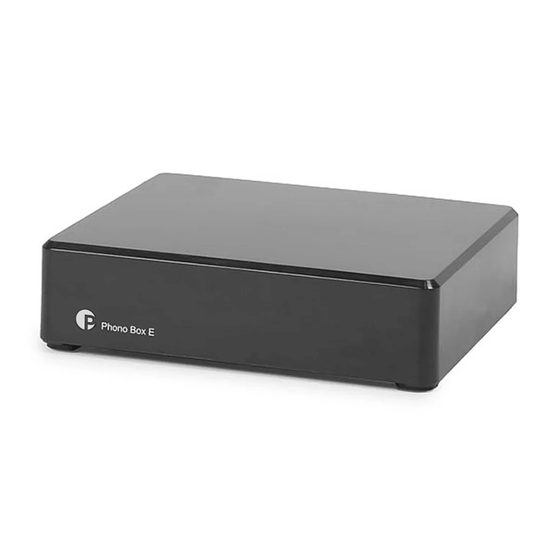

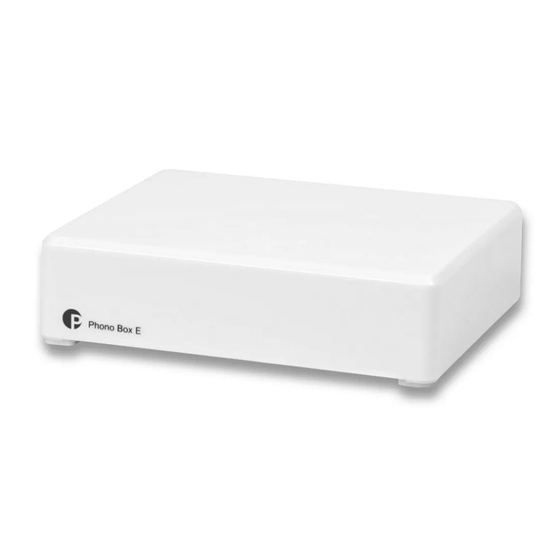

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.



Features:

  • Amplification and RIAA equalisation for MM cartridges
  • Design principle inspired by Dr. Sykora
  • SMD circuitry
  • Special low noise components
  • Internal metal shielding
  • Small size allows installation close to record player

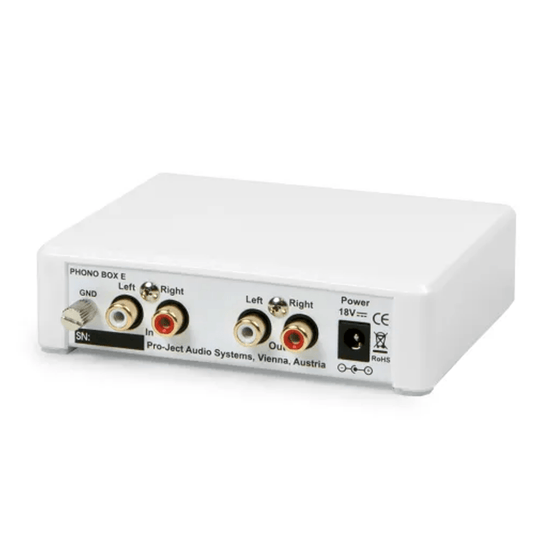

  • Gold plated RCA connection sockets
  • Outboard power supply included
  • Black or White casing
  • Input impedance: 47 kohms
  • Input capacitance: 120 pF
  • Gain: 40 dB
  • Output voltage(typically): 500mV/ 1kHz at 5mV/1kHz
  • Noise floor: 88 dB (A weighted)
  • THD: <0,05%
  • RIAA deviation: deviation max. 0.5 dB/ 20 Hz - 20 kHz
  • Input: 1 pair RCA socket
  • Output: 1 pair RCA socket
  • Outboard power supply: 18 V/500 mA DC; 220 - 240 V, 50 Hz
  • Standby power consumption: < 1 watt
  • Power consumption: 20 mA DC
  • Dimension W x H x D (D with sockets): 120 x 32 x 100 (106) mm
  • Weight: 269 g without power supply
  • Colour : Black or white
