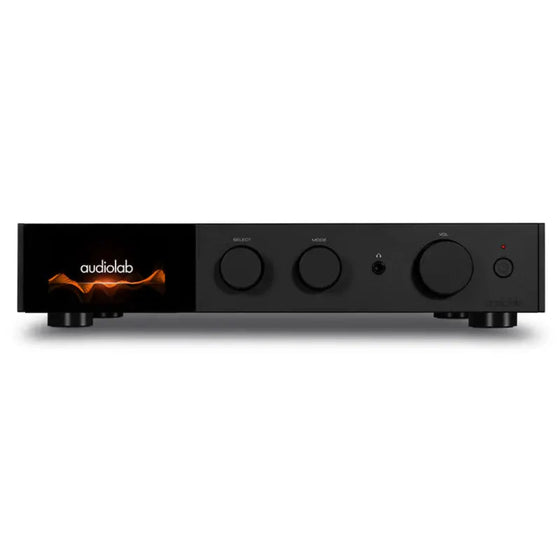

Solid State Integrated Amplifier Audiolab 9000A (MM)
Regular price
€2.190,00
VAT included in price for European Union countries and may be adjusted based on delivery country at check-out.
Average shipping time : 4 to 5 weeks. Shipping is free within European Union (except for specific territories) above 99€ purchase up to 50kg. Shipping costs on quote above 50kg – quote request to be send to : contact@audiosoundmusic.com. There is no return policy for countries outside of the European Union.
As ever, the 9000A is the centre of the audiolab focus in being the beating heart of any high-performance audio system. It’s more powerful, capable and feature-packed than any of the preceding models – the most advanced audiolab integrated amplifier yet. Versatility is key to audiolab’s integrated amplifier appeal, and the 9000A offers to cater for audiophiles of all creeds. Loaded with digital and analogue source connection, wireless connectivity for portable devices, an all-new phono stage to cater for vinyl playback and the usual, class-leading amplification for loudspeakers and headphones.
Flexible and capable
Differentiating itself from rivals within its category, the audiolab 9000A blends digital capability with an analogue pedigree. Premium level D/A conversion, as one would always expect from audiolab, allows a range of digital sources (over four digital inputs) to be connected directly to this high-power integrated unit. Yet, based on over 40 years of amplifier design pedigree, not to mention a recent history of multi-award-winning audio solutions, the 9000A also caters for analogue device integrations (via three AUX, balanced XLR and a dedicated phono input).
The world of modern audio enjoyment is not limited to wired playback devices though, hence the 9000A also supports wireless connectivity via Bluetooth and digital audio via a PC USB connection.
High-Performance Phono Stage
With every iteration of integrated amplifier design, audiolab works to improve on the bench-mark, built-in phono stage section. The 9000A is no different; pushing the boundaries of performance of an onboard phono pre-amp section. The all-new phono pre-amp for 9000A offers compatibility for moving magnet – a JFET-based circuit with precise RIAA equalisation offers the best of both worlds for the turntable using audiolab fans.
Similarly, for the headphone output stage employing current-feedback circuitry with wide bandwidth and high slew rate; the 9000A ensures a dynamic, detailed and engaging performance with all manner of headphone types, with that extra added audiolab sparkle from the consistent signal integrity from all inputs.
The audiolab 9000A continues with the theme of flexibility in audio system integration. As is a staple to the audiolab integrated amplifier design, the 9000A offers three variations of operating mode, making it a versatile and essential component in any system.
Flagship DAC
The 9000A features the latest ESS 9038PRO flagship 32-bit DAC chip. Using the critically acclaimed patented HyperStream® II architecture and Time Domain Jitter Eliminator, the ES9038PRO delivers an unprecedented performance level that will satisfy the needs of the most demanding audio applications – fitting an amplifier of the 9000A’s calibre.
Years of experience and countless ESS-equipped models mean that audiolab is more than familiar with making the most of this technically excellent but challenging DAC technology. Great attention has been paid in developing a system that allows audiolab electronics and ESS DAC technology to offer the best in audiophile performance.
The amp’s four S/PDIF digital inputs – two coaxial and two optical – handle hi-res PCM data up to 24-bit/192kHz and benefit from a host of user-selectable digital filters that allow the user to optimise the response to suit the source file and bandwidth of the partnering equipment.
PCM audio is supported to 32-bit/768kHz, alongside DSD to 22.5MHz (DSD512). Every significant hi-res and lossless audio format is catered for, including FLAC, ALAC, AIFF and WAV, as well as compressed legacy formats.
MQA All the Way
The 9000A also delivers full decoding of MQA, the hi-res streaming technology from a custom engineered MQA certified DAC solution. This means that the complete ‘three unfold’ decoding process is performed internally, as opposed to just the final unfold in the manner of an MQA ‘renderer’, which makes the 9000A an excellent system choice for subscribers to Tidal’s ‘HiFi Plus’ tier where Tidal Masters (MQA) content can be found.
As expected for modern audio playback convenience, Bluetooth connectivity is featured as standard with the 9000A stepping up to the aptX HD protocol for sonically superior and easy wireless streaming from smartphones, tablets, laptops and more. Bluetooth-paired devices also benefit from the quality of the amp’s DAC section and filter options.
Preamplifier
Profit: +6 dB (Line), +53 dB (Phono MM)
Input Sensitivity: 1 Vrms (Line), 2 Vrms (XLR) & 4.4 mV (Phono MM)
Input Impedance: 10K (Line), 47K (Phono MM)
Total Harmonic Distortion <0,0004%
Frequency range: 20 Hz - 20 kHz
Output voltage: 2.3V max.
Output Impedance: 120 Ohm
Signal-to-noise ratio >110 dB (Line), >80 dB (Phono MM)
DAC
D to A converter: ES9038Pro
Total Harmonic Distortion <0,001%
output level: 2.1 Vrms
max. sample rate: 192kHz
Signal-to-noise ratio: >117 dB
Amplifier power:
Profit: +29 dB
Nominal power: 2x 100 W (8 ohms), 2x 160 W (4 ohms)
Frequency range: 20 Hz - 20 kHz
Total Harmonic Distortion <0,002%
Input Sensitivity: 1 Vrms
Signal-to-noise ratio: >110 dB
max. output current: 15A
Headphone amplifier
Total Harmonic Distortion <0,01%
Output Impedance: 2.35 Ohm
Load Impedance: 20 - 600 Ohms
General
Standby power consumption <0.5 W
Inputs 3x Analog, 1x Phono, 2x Coax, 2x Optical, 1x Bluetooth, 1x Power in, 1x PC USB, 1x 12V Trigger
Outputs: 1x RCA PRE out, 1x Headphone, 1x Stereo Speaker, 1x 12V Trigger
Dimensions (depth x width x height): 342 mm x 444 mm x 89 mm
Weight: 9.4 kg
