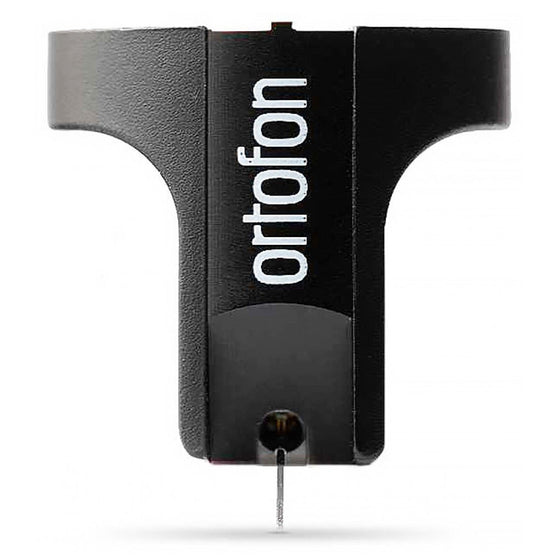

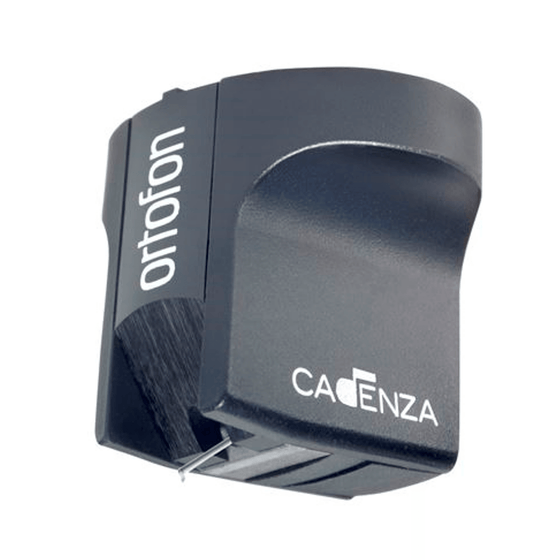

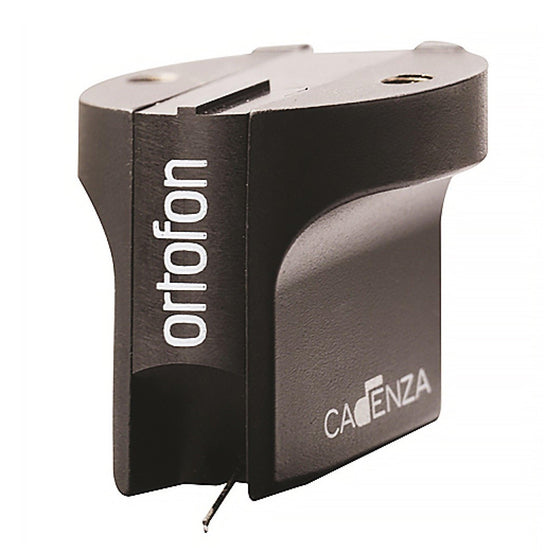

Moving Coil Phono Cartridge ORTOFON MC Cadenza Black
Moving Coil Phono Cartridge ORTOFON MC Cadenza Black
Moving Coil Phono Cartridge ORTOFON MC Cadenza Black
Moving Coil Phono Cartridge ORTOFON MC Cadenza Black
Moving Coil Phono Cartridge ORTOFON MC Cadenza Black
Moving Coil Phono Cartridge ORTOFON MC Cadenza Black

Moving Coil Phono Cartridge ORTOFON MC Cadenza Black

€2.599,00
VAT included in price for European Union countries. VAT may be adjusted based on delivery country at check-out. Shipping cost (free above 99€ purchase within European Union) will be added at check-out.
banner
MOST EQUIPMENT ARE MANUFACTURED TO ORDER AND REQUIRE EXTENDED DELIVERY TIME
Three to four weeks are usually necessary, sometimes much more

Cadenza Black is optimized for an amazing tonal neutrality, dynamics and purity of sound

The Cadenza Black model is using a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminium. It also uses the WRD/Wide Range Damping-system applied for MC Windfeld, MC A90, MC Anna, Xpression and MC A95 cartridges, controlling the high and low frequency damping separately.

The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire.

Cadenza Black is high performing on areas like detail, consistency and sound staging.



Features:

  • Output voltage at 1000 Hz, 5cm/sec. - 0.33 mV
  • Channel balance at 1 kHz - < 0.8 dB
  • Channel separation at 1 kHz - > 27 dB
  • Channel separation at 15 kHz - > 20 dB
  • Frequency response 20 Hz - 20 kHz - +1.5/0
  • Tracking ability at 315Hz at recommended tracking force *) - 90 µm
  • Compliance, dynamic, lateral - 16 µm/mN
  • Stylus type - Nude Shibata on Boron cantilever
  • Stylus tip radius - r/R 6/50 µm
  • Tracking force range - 2.0-2.5 g (20-25 mN)
  • Tracking force, recommended - 2.3 g (23 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - > 10 Ohm
  • Cartridge body material - Stainless steel Aluminium
  • Cartridge colour - Black/Black
  • Cartridge weight - 10.7 gram

*) Typical value



Optional Installation service : on customer's site installation and set-up within European Union

If you buy the optional installation service, one of our team members will take an appointment with you to deliver the cartridge, install it and make sure it is properly set-up.
