Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression
Moving Coil Phono Cartridge ORTOFON Xpression

Moving Coil Phono Cartridge ORTOFON Xpression

€4.999,00
worldwide-delivery
VAT included in price for European Union countries and may be adjusted based on delivery country at check-out.
Average shipping time : 4 to 5 weeks. Shipping is free within European Union (except for specific territories) above 99€ purchase up to 50kg. Shipping costs on quote above 50kg – quote request to be send to : contact@audiosoundmusic.com. There is no return policy for countries outside of the European Union.

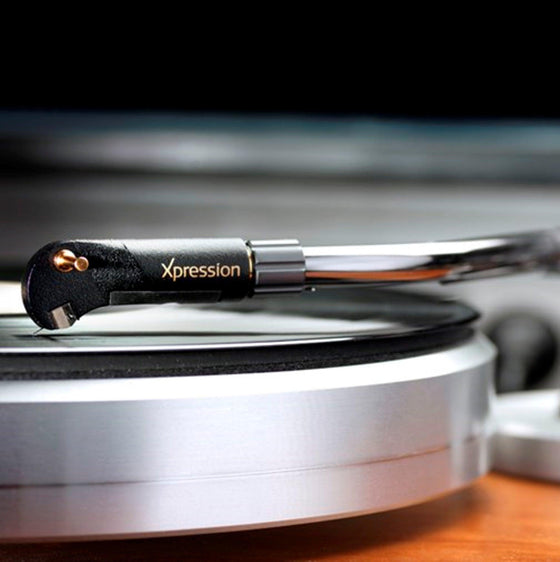

The Ortofon Xpression High-End cartridge

The state of the art product, the Ortofon Xpression represents a combination of three elements very characteristic for Ortofon:

  • The cutting edge SLM materials technology pioneered by the MC A90 and SPU 90th Anniversary
  • Modification of the generator system introduced with the MC A90 and the MC Windfeld
  • Ortofon design tradition



Utilising these three elements we created a new product in order to support our customers of the SPU cartridges and Ortofon tonearms.



The Xpression cartridge bridges the gap between the SPU-type cartridges and High-End cartridges like the MC A90 and the MC Windfeld designed for headshell mounting. The result is a high-performance moving coil cartridge with the convenience of a standard headshell connector, which provides a simple and elegant method of directly connecting the generator and tonearm via the Xpression’s one-piece body.



Features:

  • Output voltage at 1000 Hz, 5cm/sec. -  0.3 mV
  • Channel balance at 1 kHz -  < 0.2 dB
  • Channel separation at 1 kHz -  > 28 dB
  • Channel separation at 15 kHz -  > 22 dB
  • Frequency response -  20 Hz-20 kHz +0.5 /- 1.5 dB
  • Tracking ability at 315Hz at recommended tracking force -  90 µm
  • Compliance, dynamic, lateral -  11 µm/mN
  • Stylus type -  Special polished Nude Ortofon Replicant 100 on Boron Cantilever
  • Stylus tip radius -  r/R 5/100 µm
  • Tracking force range -  2.3 -2.8 g (23-28 mN)
  • Tracking force, recommended -  2.6 g (26 mN)
  • Tracking angle -  23°
  • Internal impedance, DC resistance -  4 Ohm
  • Recommended load impedance -  > 10 Ohm
  • Cartridge body material -  SLM Stainless Steel and Special proprietary TPE-compound
  • Cartridge colour -  Black
  • Cartridge weight -  28 gram



Optional Installation service : on customer's site installation and set-up within European Union

If you buy the optional installation service, one of our team members will take an appointment with you to deliver the cartridge, install it and make sure it is properly set-up.

To buy an installation service please click here
